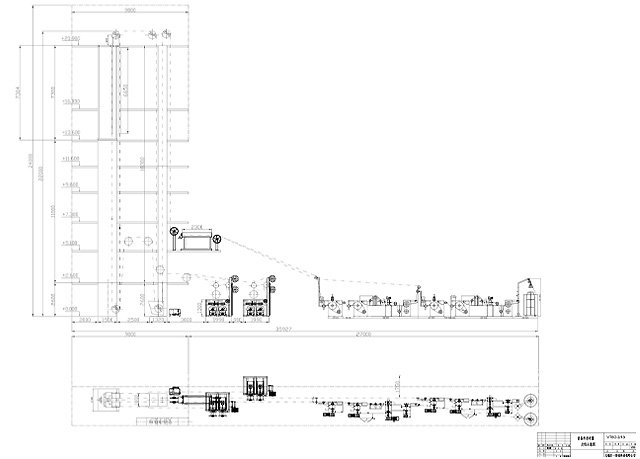

Vertical high speed flat wire enamelling machine
typed VT

      VT series high speed flat wire enamelling machine is designed based on Single line single oven/high speed with high airflow, maximum double coat,steamgenerator is heated by exhausted gas, the oven equipped with heat recirculation、catalyst burning unit and without electric heater inside oven chamber, also involves automatic computer control systems, customer recipe system, semi-auto bobbin change over, take up & traverse via servo drive, which can be an idealized selection especially for high grade enamelling wire production for transformer, high voltage motor, motor vehicle, charging stations and etc .
Main Features:
· Improvements of oven heat insulation
  All insulating cottons adpot ceramic fiber material
  Thicken heaters insulation zone at top of oven
· Lubricant oil coated with flow control
· Management functions
  Earthnet interface available for remote control
  Detection, storing and collection of power consumption quantity and unit power consumption
· Wire accumulator
VT8/4-4/14(3-80mm² )Production and power consumption sheet
Wire Range DV PEI Productivity Power Consumption
mm x mm mm² velocity * diameter kg/24h Kwh/kg
4 x 1.25 5 40 5373 0.55
7 x 1.5 10.5 40 8700 0.55
7.5 x 2 15 40 9722 0.55
12 x 3 36 36 13815 0.55
Production variety: PVF+SB,PEI+PAI

Main Technical Parameters:
Wire range: 3-80 mm²
Total lines: 4(single line/single oven)
Total passes: 14(combined freely,die)
Wire pitch: 37 mm
Mechanical speed: max20m/min
Wind-up bobbin: Ø500 X Ø315 X 180 X Ø45
Winding-up: capstan separately, digital traverse system
winding-up via servo drive,semi-auto reel alternation
Wire accumulator: wire storing 80m,with automatic control of wire tension
Total installed power: 550KW
